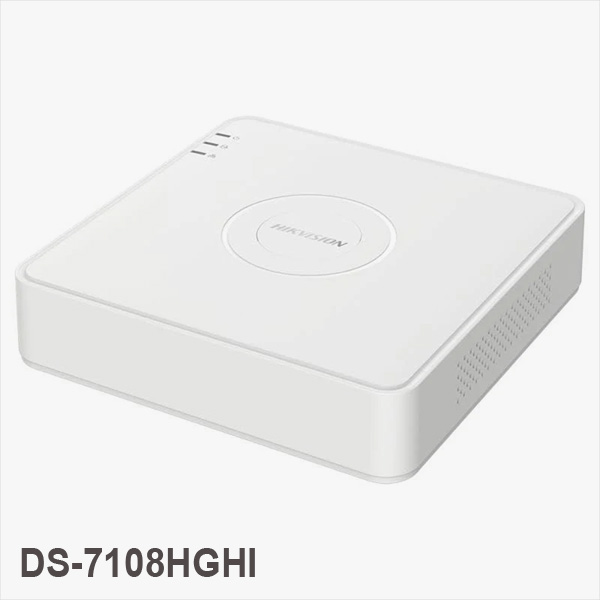

TURBO HD DVR

Description

Motion Detection 2.0

• Human/Vehicle Analysis – Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
  Quick search by object or event type is supported;

Recording

• Video Compression – H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution –
  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
  For 720p stream access: 720p/WD1/4CIF/VGA/CIF
  For SD stream access: WD1/4CIF/VGA/CIF
• Frame Rate –
  Main stream:
  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  Sub-stream:
  For 1080p and 720p stream access: CIF/QVGA@15 fps
  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate – 32 Kbps to 4 Mbps
• Stream Type – Video, Video & Audio
• Audio Compression – G.711u
• Audio Bitrate – 64 Kbps

Video and Audio

• IP Video Input – 2-ch (up to 10-ch)
  Up to 5 MP resolution
  Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input – 8-ch
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input – 1080p25, 1080p30, 720p25, 720p30
• AHD Input – 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input – 1080p25, 1080p30, 720p25, 720p30
• CVBS Input – Support
• HDMI Output – 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output – 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode – HDMI/VGA simultaneous output
• Audio Input –
  1-ch RCA (2.0 Vp-p, 1 KΩ)
  8-ch via coaxial cable
• Audio Output – 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio – Reuse the first audio input
• Synchronous playback – 8-ch

Network

• Total Bandwidth – 72 Mbps
• Network Protocol – TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Remote Connection – 64
• Network Interface – 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA – 1 SATA interface
• Capacity – Up to 4 TB capacity for each disk
• USB Interface – Rear panel: 2 × USB 2.0
• Alarm In/Out – N/A

General

• Power Supply – 12 VDC, 1.5 A
• Consumption – ≤ 17 W (without HDD)
• Working Temperature – -10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity – 10% to 90%
• Dimension (W × D × H) – 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Weight – ≤ 1 kg (without HDD, 2.2 lb.)
