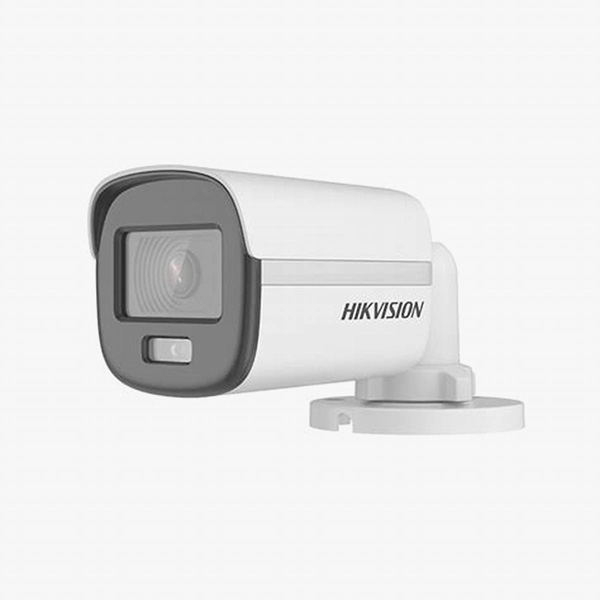

3K ColorVu Audio

Description

Camera

• Image Sensor – 3K CMOS
• Signal System – PAL/NTSC
• Resolution – 2960 (H) × 1665 (V)
• Frame Rate –
  TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps
  AHD: 5 MP@20fps, 4 MP@25fps/30fps
  CVI: 4 MP@25fps/30fps
  CVBS: PAL/NTSC
• Min. Illumination – 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  Shutter Time – PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens – 2.8 mm and 3.6 mm fixed focal lens
• Field of View –
  2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
  3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
• Lens Mount – M12
• Light Alarm – Solid Light Alarm (White Light)
• Day & Night – 24/7 Color Imaging
• WDR (Wide Dynamic Range) – Digital WDR
• Angle Adjustment – Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°


• • White Light – Auto/Off

Image Mode – STD/HIGH-SAT/HIGHLIGHT

• AGC – Yes
• Day/Night Mode – Color
• White Balance – Auto/Outdoor/Global/Manual
• AE (Auto Exposure) Mode – DWDR,BLC,HLC,Global,HLS
• Noise Reduction – 2D DNR
• Language – English
• Function –
  Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light

Interface

• Video Output – Switchable TVI/AHD/CVI/CVBS
• Audio In – Built-in mic

General

• Operating Conditions – -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply – 12 VDC ± 25%,
  *You are recommended to use one power adapter to supply the power for one camera.
• Consumption – Max. 2.5 W
• Protection Level – IP67
• Material – Plastic
• White Light Range – Up to 20 m
• Communication – HIKVISION-C
• Dimension – 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Weight – Approx. 238 g (0.52 lb.)

Accessory (Optional)

• DS-1280ZJ-XS Junction box
