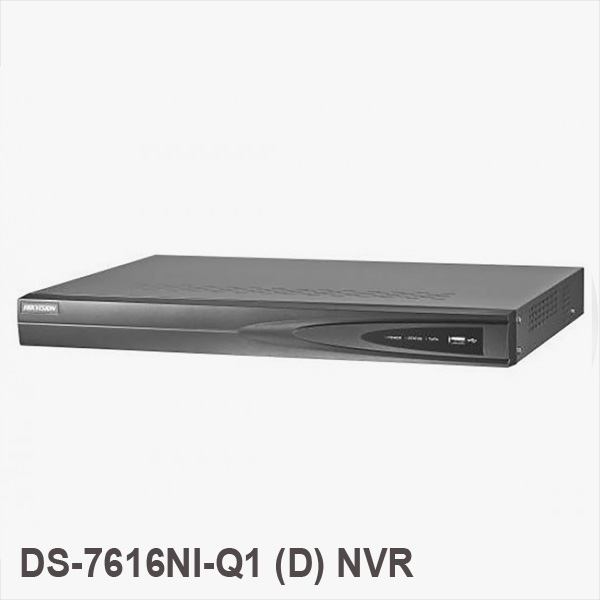

DS-7616NI NVR

Description

Motion Detection 2.0

• Human/Vehicle Analysis – 4-ch

Video and Audio

• IP Video Input – 16-ch
• Incoming Bandwidth – 160 Mbps
• Outgoing Bandwidth – 80 Mbps
• HDMI Output –
  1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output – 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode – HDMI/VGA simultaneous output
• Audio Output – 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio – 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding Format – H.265+/H.265/H.264+/H.264
  Recording Resolution – 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback – 16-ch
• Decoding Capability – 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Stream Type – Video, Video & Audio
• Audio Compression – G.711ulaw/G.711alaw/G.722/G.726

Network

• Remote Connection – 32
• Network Protocol -TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface – 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA – 1 SATA interface
  Capacity – Up to 8 TB capacity for each disk
• USB Interface – 2 × USB 2.0
• Alarm In/Out – N/A (4/1 is optional)

General

• Power Supply – 12 VDC, 1.5 A
• Consumption – ≤ 10 W (without HDD)
• Working Temperature – -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity – 10% to 90%
• Dimension (W × D × H) – 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
• Weight – ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC – Part 15 Subpart B, ANSI C63.4-2014
• CE – EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Note:

*Alarm in/out can be optional for certain models. If you select a device model with “/ALARM”, then the device will have 4
alarm inputs and 1 alarm output.
