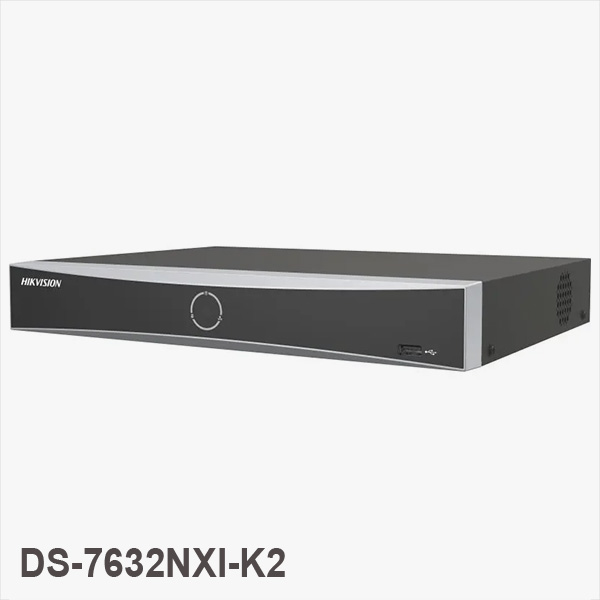

AcuSense 4K NVR

Description

Intelligent Analytics

• AI by Device – Facial recognition, perimeter protection, motion detection 2.0
• AI by Camera – Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition

• Facial Detection and Analytics – Face picture comparison, human face capture, face picture search
• Face Picture Library – Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance – 1-ch, 8 MP
• Face Picture Comparison – 4-ch

Motion Detection 2.0

• By Device – All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• By Camera – All channels

Perimeter Protection

• By Device – 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By Camera  – All channels

Video and Audio

• IP Video Input – 32-ch
• Incoming Bandwidth – 256 Mbps
• Outgoing Bandwidth – 160 Mbps
• HDMI Output
  1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode – HDMI/VGA independent output
• CVBS Output – N/A
• Audio Output – 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Two-Way Audio – 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding Format – H.265/H.265+/H.264+/H.264
• Recording Resolution – 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback – 16-ch
• Decoding Capability –
  AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
  AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
• Stream Type – Video, Video & Audio
• Audio Compression – G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection -128
• API – ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser – IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol – TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface – 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA – 2 SATA interfaces
• Capacity – Up to 10 TB capacity for each HDD
• USB Interface – Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out – 4/1

General

• GUI Language – English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply – 12 VDC, 3.3 A
• Consumption – ≤ 15 W (without HDD)
• Working Temperature – -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity – 10% to 90%
• Dimension (W × D × H) – 385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight – ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC – Part 15 Subpart B, ANSI C63.4-2014
• CE  -EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4,-EN 55035: 2017
• Obtained Certification – CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

Note:
*Facial recognition, motion detection 2.0 or perimeter protection cannot be enabled at the same time.
