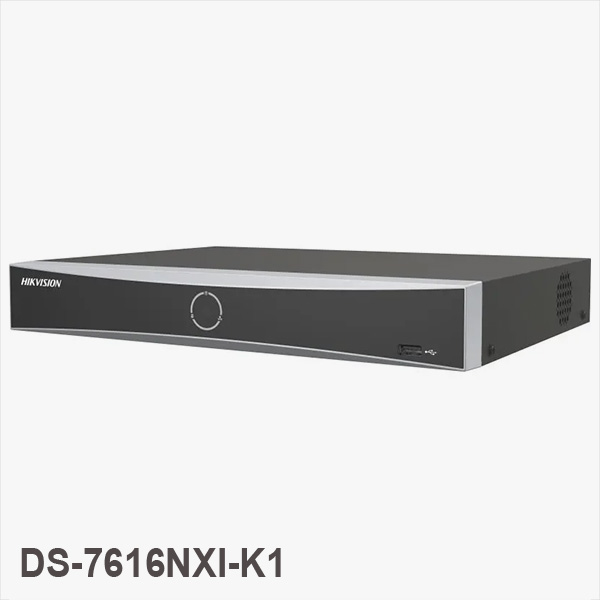

AcuSense NVR

Description

Facial Recognition

• Facial Detection and Analytics – Face picture comparison, human face capture, face picture search
• Face Picture Library – Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance- 1-ch human face capture
• Face Picture Comparison – 4-ch face picture comparison alarm

Motion Detection 2.0

• Human/Vehicle Analysis – 16-ch

Video and Audio

• IP Video Input – 16-ch
• Incoming Bandwidth – 160 Mbps
• Outgoing Bandwidth – 80 Mbps
• HDMI Output –
  1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output – 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode – HDMI/VGA independent output
• CVBS Output N/A
• Audio Output – 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio – 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format – H.265/H.265+/H.264+/H.264
• Recording Resolution – 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback – 16-ch
• Decoding Capability –
  AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
  AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
• Stream Type – Video, Video & Audio
• Audio Compression – G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection – 128
• Network Protocol – TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface – 1 RJ-45 10/100/1000 Mbps self-adaptive
• Ethernet interface

Auxiliary Interface

• SATA – 1 SATA interface
• Capacity – Up to 10 TB capacity for each HDD
• USB Interface – Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out – N/A

General

• Power Supply  -12 VDC, 1.5 A
• Consumption – ≤ 10 W (without HDD)
• Working Temperature – -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity – 10% to 90%
• Dimension-  (W × D × H) 320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
• Weight – – ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC – Part 15 Subpart B, ANSI C63.4-2014
• CE – EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Note:

*Facial recognition and motion detection 2.0 cannot be enabled at the same time.
