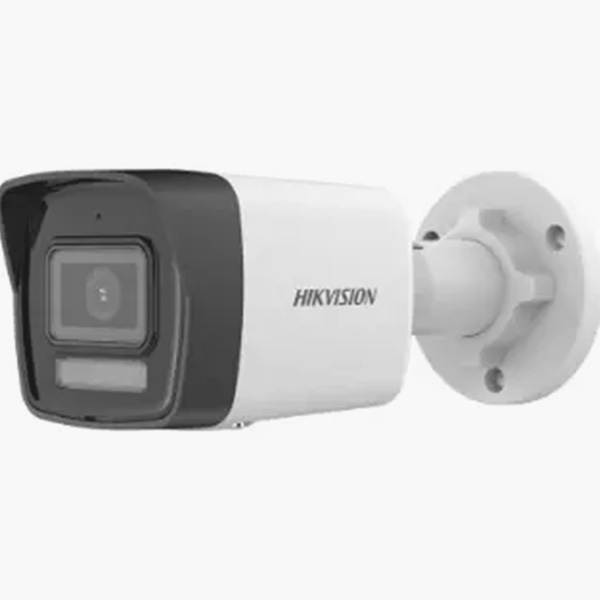

2 MP Fixed Audio

Description

Camera

• Image Sensor – 1/2.9″ Progressive Scan CMOS
• Max. Resolution – 1920 × 1080
• Min. Illumination – Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time – 1/3 s to 1/100,000 s
• Day & Night – IR cut filter
• Angle Adjustment – Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type – Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV – 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
• 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
• Lens Mount – M12
• Iris Type – Fixed
• Aperture – F1.6

DORI

• DORI – 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light Type – IR, White Light
• Supplement Light Range – Up to 30 m
• Smart Supplement Light – Yes
• IR Wavelength – 850 nm

Video

• Main Stream-
  50 Hz: 25 fps (1920 × 1080, 1280 × 720)
  60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream –
  50 Hz: 25 fps (640 × 480, 640 × 360)
  60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression –
  Main stream: H.265+/H.265/H.264+/H.264,
  Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate – 32 Kbps to 8 Mbps
• H.264 Type -Baseline Profile, Main Profile, High Profile
• H.265 Type – Main Profile
• Bit Rate Control – CBR, VBR
• Region of Interest (ROI) – 1 fixed region for main stream

Audio

• Audio Type – Mono sound
• Environment Noise Filtering – Yes
• Audio Sampling Rate – 8 kHz/16 kHz
• Audio Compression -G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate –
  64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• Security –
  Password protection, complicated password, watermark, basic and digest
  authentication for HTTP, WSSE and digest authentication for Open Network Video
  Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View – Up to 6 channels
• API – Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
• Protocols – TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
• User/Host – Up to 32 users
• 3 user levels: administrator, operator, and user
• Client – iVMS-4200, Hik-Connect
• Web Browser –
  Plug-in required live view: IE 10, IE 11,
  Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR) – Digital WDR
• SNR – ≥ 52 dB
• Day/Night Switch – Day, Night, Auto, Schedule
• Image Enhancement – BLC, HLC, 3D DNR
• Image Settings –
  Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
  adjustable by client software or web browser
• Privacy Mask – 4 programmable polygon privacy masks

Interface

• Ethernet Interface – 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage –
  -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
• Built-in Microphone – Yes
• Reset Key – -F: Yes

Event

• Basic Event –
  Motion detection (support alarm triggering by specified target types (human and
  vehicle)), video tampering alarm, exception
• Linkage –
  Upload to FTP/memory card (-F), send email, notify surveillance center, trigger
  recording (-F), trigger capture

General

• Power –
  12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity
  protection,
  PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material – Metal & Plastic
• Dimension – 170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
• Package Dimension – 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Weight – Approx. 265 g (0.6 lb.)
• With Package Weight – Approx. 495 g (1.1 lb.)
• Storage Conditions – -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions –
  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language – English, Ukrainian
• General Function – Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• • EMC –
    FCC: 47 CFR Part 15, Subpart B,
    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
    50130-4: 2011 +A1: 2014,
    RCM: AS/NZS CISPR 32: 2015,
    IC: ICES-003: Issue 7
  • Safety –
    UL: UL 62368-1,
    CB: IEC 62368-1: 2014+A11,
    CE-LVD: EN 62368-1: 2014/A11: 2017,
    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment –
    CE-RoHS: 2011/65/EU,
    WEEE: 2012/19/EU,
    Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013



Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.



• Top-level protection – Hikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks,
  chemical plants, and more.
• Moderate protection – Hikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.
• No specific protection – Hikvision products at this level are equipped for use in areas where no specific anti-corrosion protection is needed.
